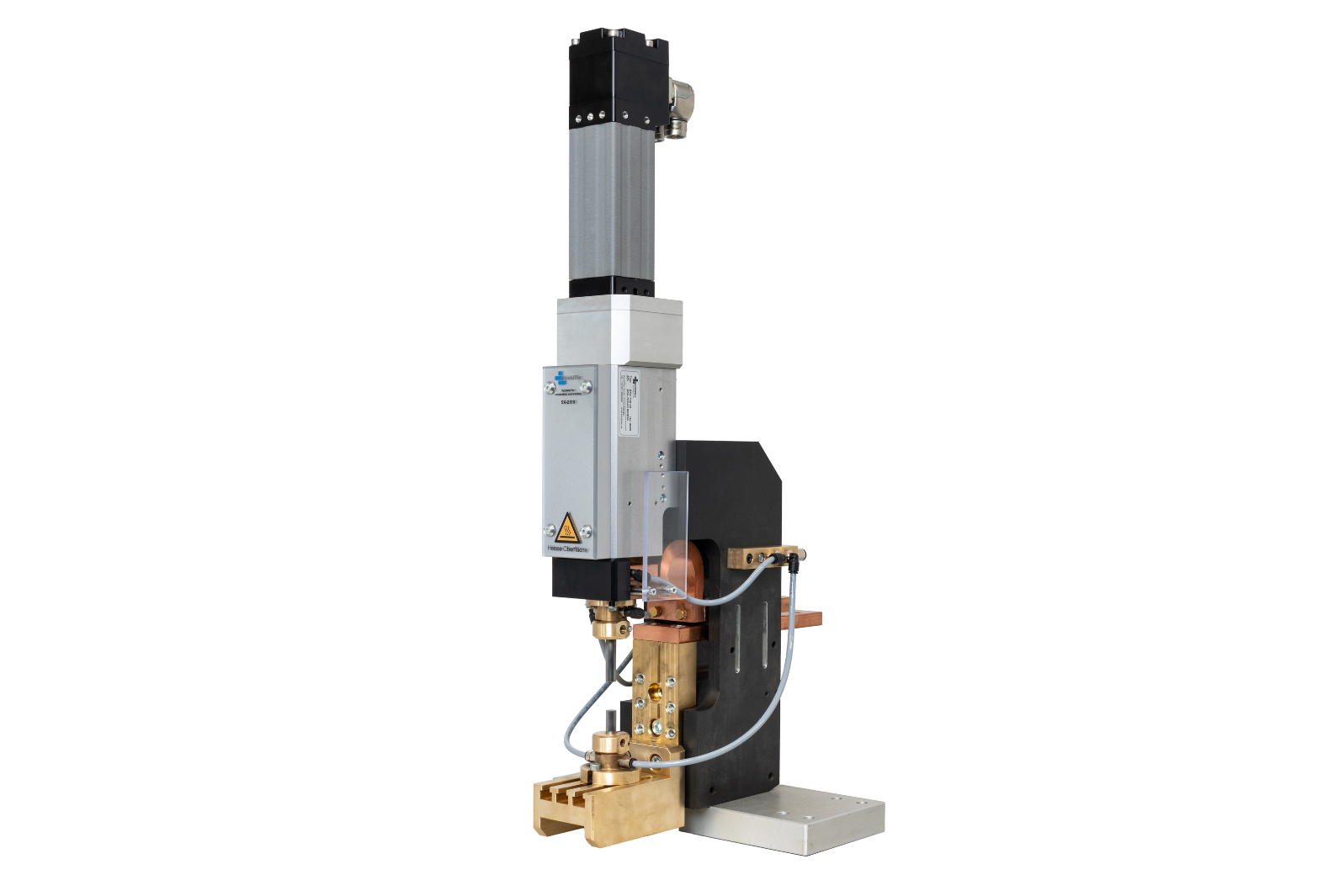

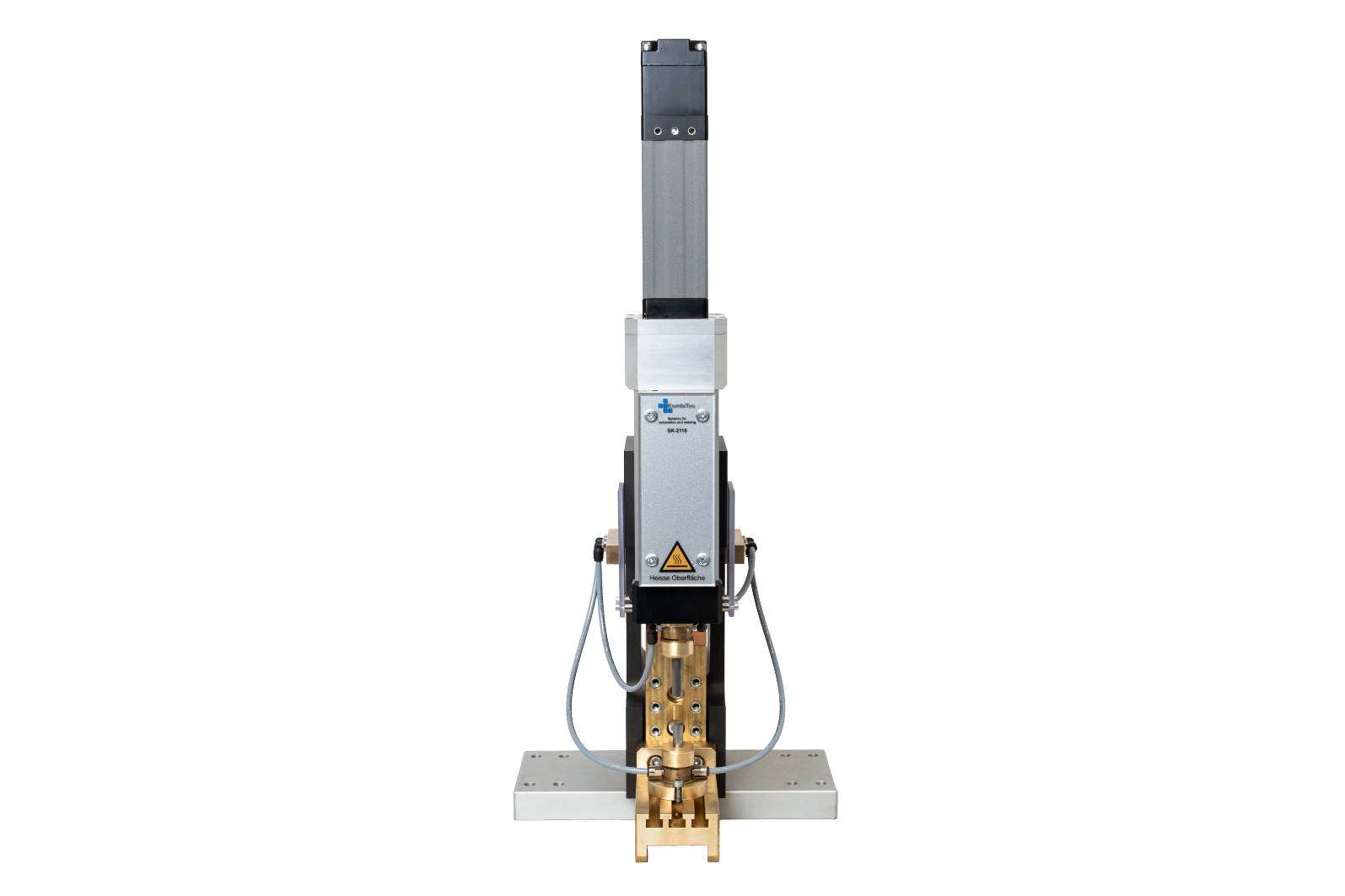

- Servo-electric drive
- Welding force up to 1.000 N
- Weight approx. 20 kg
- Electrode stroke max. 25 mm
- Processing speed 635 mm/s
- Motor voltage 230 Vac
- Integrated displacement and force measurement
- Excellent resetting performance
- Pneumatic force adjustment
- Various force adjustment cylinders and springs possible
- Electrode holder water-cooled and secured against rotation
- Precise electrode quick-change system
- Integrated path measurement for component control, sinking depth, residual thickness
- Also available as a double head
- Direct control of the servo welding head via the inverter
- Quality improvement through real-time force control during the welding process
- High-precision applications with fast cycle times
- Welding of compacted strands onto switch contacts
- Hot staking
- Micro welding
- Welding of sensitive parts
- In automated operation with high process reliability and reproducibility
